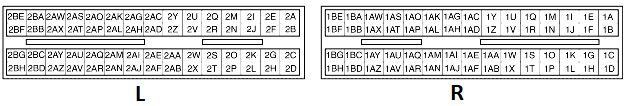

ECM CONNECTOR

          CONNECTOR 2 [L]                        CONNECTOR 1 [R]

2B

INJ1

1S

CAN-L

2C

INJ2

1W

CAN-H

2D

INJ3

1AC

F/P[NEG] IMMO

2E

INJ1[12V]

1AH

F/P[NEG] NO IMMO

2F

INJ2[12V]

1AP

FAN CTRL

2G

INJ3[12V]

1AW

MAINRLYOUT[NEG]

2H

INJ4

1AX

VBATT

2L

INJ4[12V]

1BB

MAINRLYIN

2M

IGT4[POS]

1BE

IGNSW

2P

CKP

1BF

MAINRLYIN

2Q

IGT3[POS]

1BG

MAINRLYIN

2U

IGT2[POS]

2Y

IGT1[POS]

2AZ

GND

2BB

CMP

2BD

GND

2BH

GND

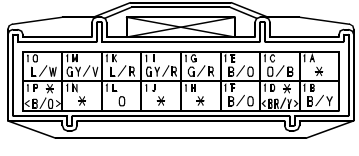

INSTRUMENT CLUSTER CONNECTOR-1


1A

1B

1C

VBATT

1D

1E

GND

1F

1G

IGNSW

1H

1I

CAN-H

1J

1K

CAN-L

1L

1M

1N

1O

1P

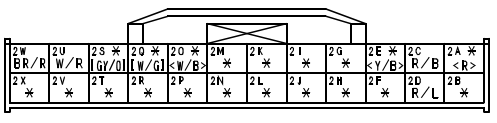

INSTRUMENT CLUSTER CONNECTOR-2

2A

2B

2C

2D

2E

2F

2G

2H

2I

2J

2K

2L

2M

2N

2O

2P

2Q

ANTENNA-PIN-A

2R

2S

ANTENNA-PIN-B

2T

2U

2V

2W

2X


ANTENNA IMMOBILIZER CONNECTOR


A

CLUSTER-2Q

B

CLUSTER-2S

C

GND

D

IGNSW
