MAZDA 6 LF31-18-881 LF30-18-881 E6T52482H1 LF30

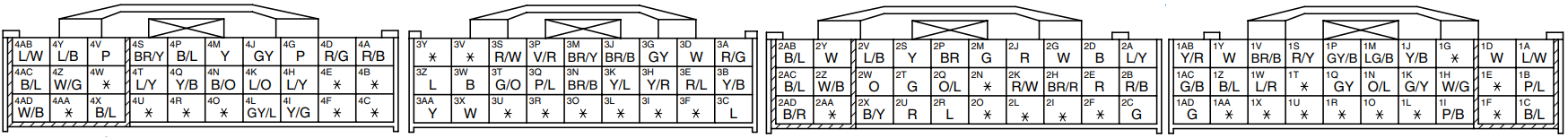

ECM CONNECTOR
4 3 2 1
|
4Q |
F/P[NEG] |
|
|
2D |
CKP+ |
1A |
IGT1-4[NEG] |
|
4W |
INJ2 |
|
|
2G |
CKP- |
1B |
IGT2-3[NEG] |
|
4X |
GND |
|
|
2J |
CMP+ |
1C |
GND |
|
4Z |
INJ1 |
|
|
2M |
CMP- |
1D |
GND |
|
4AD |
INJ3 |
|
|
2Q |
ANTENNA-PIN-A |
|
|
|
4AA |
INJ4 |
|
|
2R |
CAN-L |
|
|
|
|
|
|
|
2T |
ANTENNA-PIN-B |
|
|
|
|
|
|
|
2U |
CAN-H |
|
|
|
|
|
|
|
2W |
LED-SEC[NEG] |
|
|
|
|
|
|
|
2X |
MAINRLYOUT[NEG] |
|
|
|
|
|
|
|
2Y |
MAINRLYIN |
|
|
|
|
|
|
|
2Z |
VBATT |
|
|
|
|
|
|
|
2AB |
GND |
|
|
|
|
|
|
|
2AC |
GND |
|
|
ANTENNA IMMOBILIZER CONNECTOR
|
A |
ECM-2Q |
|
B |
ECM-2T |
|
C |
GND |
|
D |
IGNSW |
REFERENCIAS
LF31-18-881G
LF31
LF30-18-881
LF30
E6T52482H1
E6T52484H1
