MAZDA ALLEGRO 1996 BMV9C BMV9-18-881C
ECM CONNECTOR
4 3 2 1
|
4A |
GND |
|
|
|
|
1U |
F/P[NEG] |
|
4B |
IGNSW |
|
|
|
|
|
|
|
4C |
GND |
|
|
|
|
|
|
|
4D |
GND |
|
|
|
|
|
|
|
4F |
CKP |
|
|
|
|
|
|
|
4G |
CMP |
|
|
|
|
|
|
|
4I |
VBATT |
|
|
|
|
|
|
|
4N |
IGT[POS] |
|
|
|
|
|
|
|
4U |
INJ1 |
|
|
|
|
|
|
|
4V |
INJ2 |
|
|
|
|
|
|
|
4W |
INJ3 |
|
|
|
|
|
|
|
4X |
INJ4 |
|
|
|
|
|
|

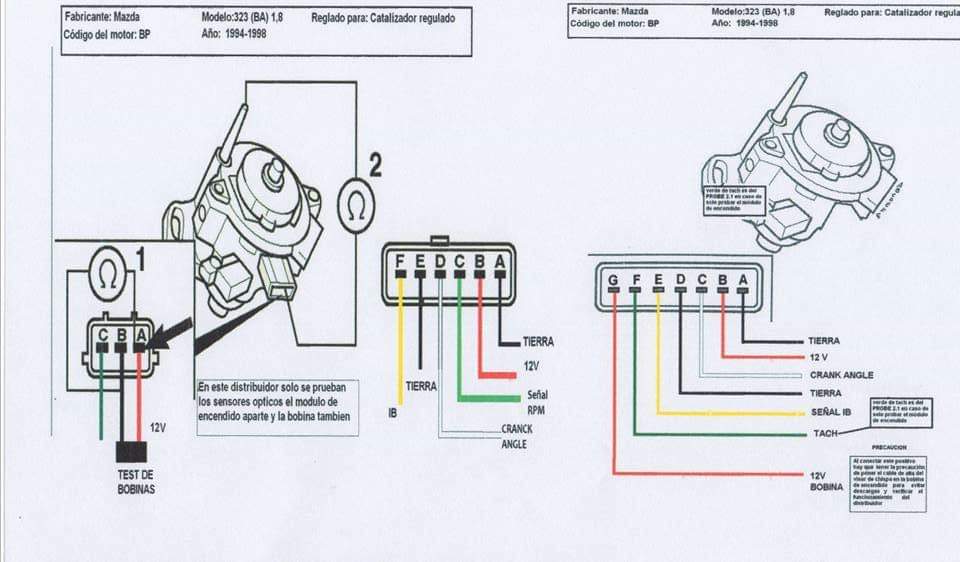

DISTRIBUTOR CONNECTOR
